BELL BOXES
#1000 Series Bell Box / Hinged
Overall dimensions 11 x 11 x 3 1/2“
20 ga electro—galvanized steel
Individual weight 10 lbs
Master carton 14 x 14 x 8"
Gloss beige powder coating
With 12v 10” burglar bell & plunger type
Tamper switches installed / stainless screws included
#1010 Series Bell Box / Hinged
Overall dimensions 14 x 14 x 4“
18 ga electro—galvanized steel
Individual weight 16 lbs
Master carton 16 x 16 x 9"
Gloss beige powder coating
With 12v 10” burglar bell & plunger type
Tamper switches installed / stainless screws included
#1010 Series Bell Box / Non—Hinged
Overall dimensions 14 x 14 x 4“
18 ga electro—galvanized steel
Individual weight 16 lbs
Master carton 16 x 16 x 9"
Gloss beige powder coating
With 12v 10” burglar bell & plunger type
Tamper switches installed / stainless screws included
UTILITY CABINETS

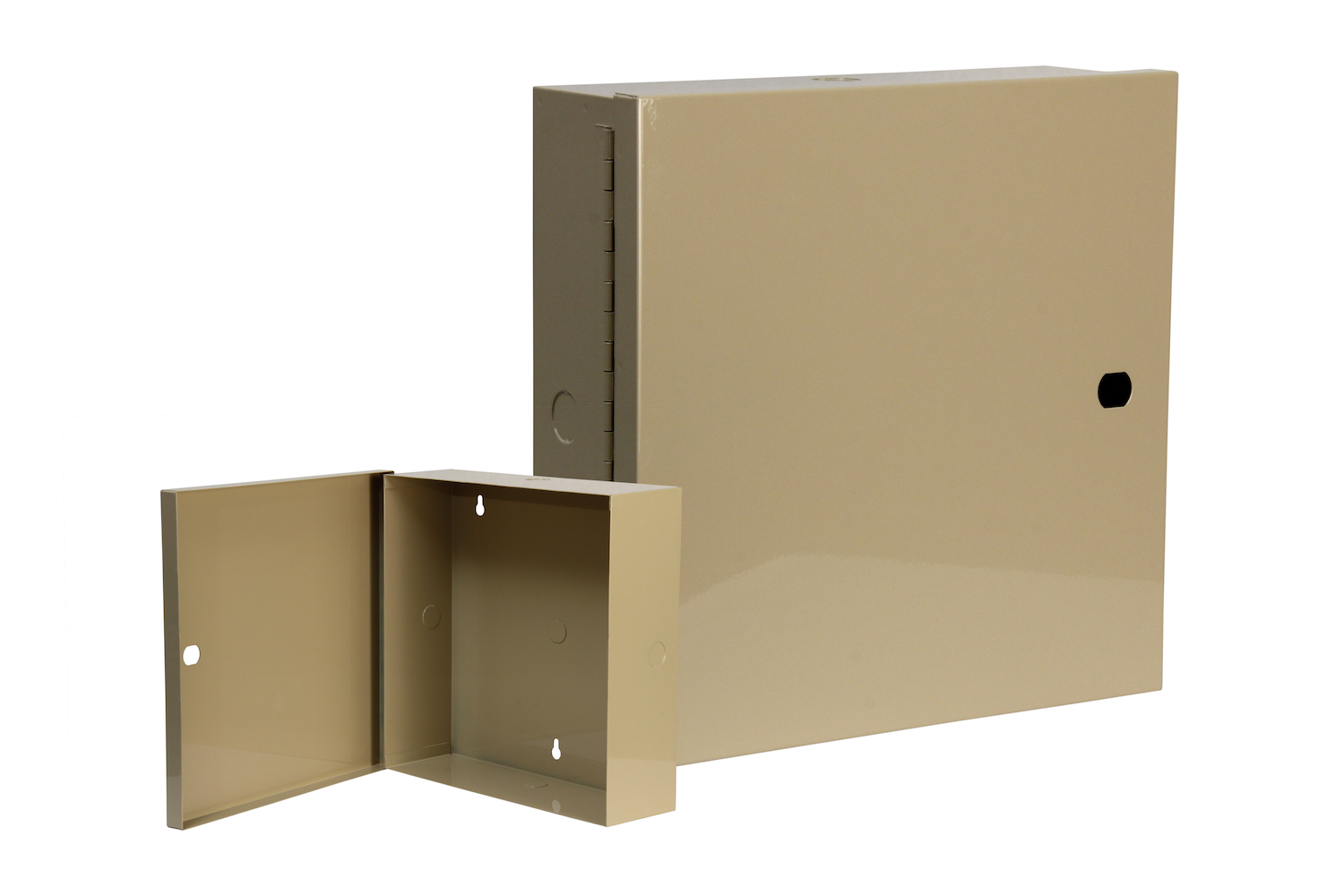

#UC100 Utility Cabinet
Overall dimensions 11 x 11 x 3 1/2“
20 ga steel / individual weight 5 lbs
Gloss beige powder coating
#UC100-1 Utility Cabinet
Overall dimensions 7 x 12 x 4“
20 ga steel / individual weight 2 lbs
Gloss beige powder coating
#UC100-2 Utility Cabinet
Overall dimensions 5 x 7 x 3“
20 ga steel / individual weight 2 1/2 lbs
Gloss beige powder coating
#UC100-3 Utility Cabinet
Overall dimensions 6 x 6 x 3“
20 ga steel / individual weight 2 lbs
Gloss beige powder coating
MISCELLANEOUS
#900034 Camlock with Clip & 2 Keys
Keyed alike #CH751
#AGMB10-1 Burglar Bell / 12v / 0.1A
Overall dimension 10“d
Individual weight 4 lbs
68 mA current draw
95 dB at 10ft typical sound output (open field)
#AGPSW-1 Tamper Switch / Plunger Type
N.O. plunger switch for closed circuit loop
7mm overall stroke / 3mm operating stroke
25" wire leads
Master carton 10 per
