BELL BOXES

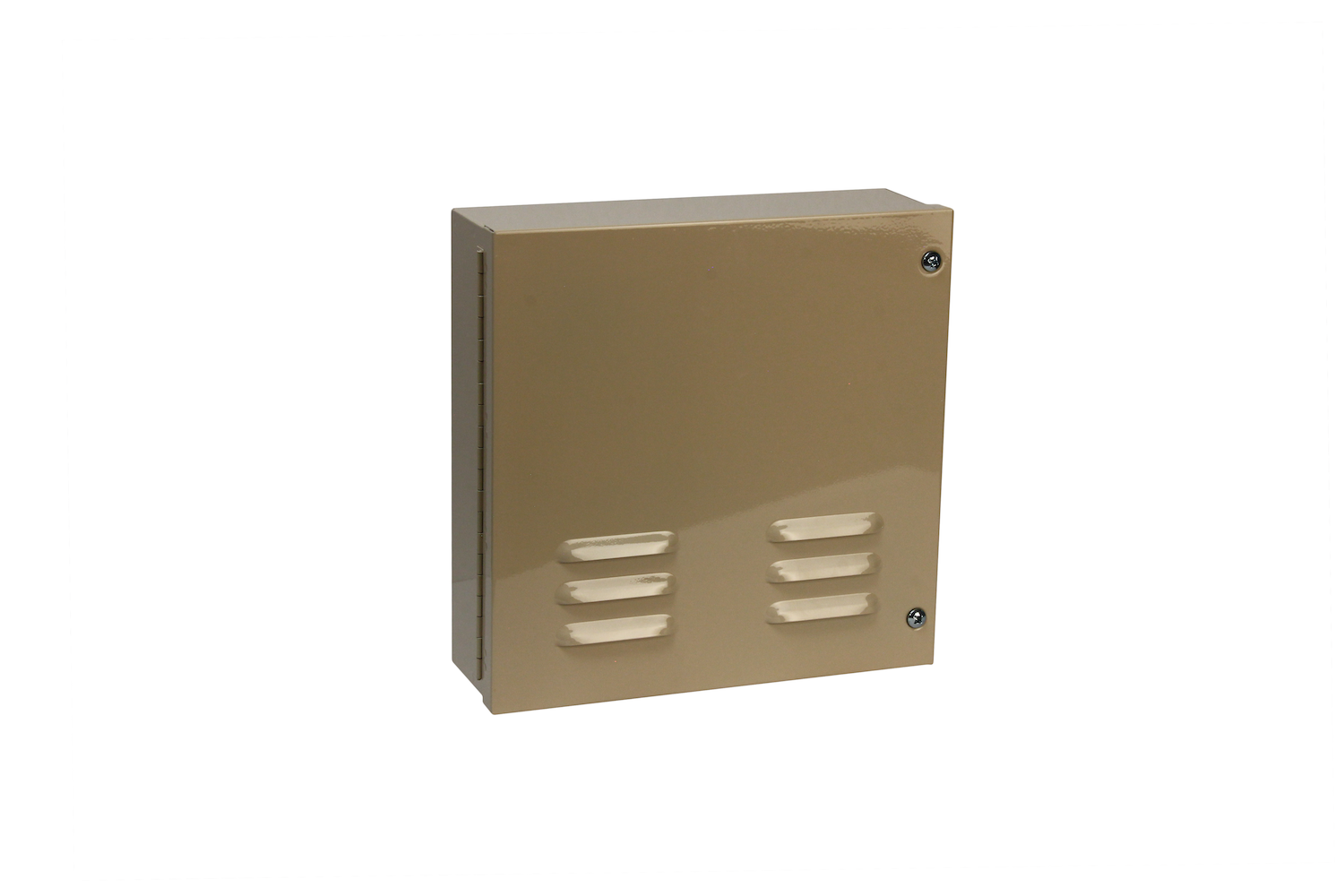

  #1000 Series Bell Box / Hinged   Overall dimensions 11 x 11 x 3 1/2“ 20 ga electro—galvanized steel Individual weight 10 lbs Master carton 14 x 14 x 8" Gloss beige powder coating  With 12v 10” burglar bell & plunger type Tamper switches installed / stainless screws included

#1000 Series Bell Box / Hinged

Overall dimensions 11 x 11 x 3 1/2“
20 ga electro—galvanized steel
Individual weight 10 lbs
Master carton 14 x 14 x 8"
Gloss beige powder coating
With 12v 10” burglar bell & plunger type
Tamper switches installed / stainless screws included

  #1010 Series Bell Box / Hinged   Overall dimensions 14 x 14 x 4“ 18 ga electro—galvanized steel Individual weight 16 lbs Master carton 16 x 16 x 9" Gloss beige powder coating  With 12v 10” burglar bell & plunger type Tamper switches installed / stainless screws included

#1010 Series Bell Box / Hinged

Overall dimensions 14 x 14 x 4“
18 ga electro—galvanized steel
Individual weight 16 lbs
Master carton 16 x 16 x 9"
Gloss beige powder coating
With 12v 10” burglar bell & plunger type
Tamper switches installed / stainless screws included


  #1010 Series Bell Box / Non—Hinged   Overall dimensions 14 x 14 x 4“ 18 ga electro—galvanized steel Individual weight 16 lbs Master carton 16 x 16 x 9" Gloss beige powder coating  With 12v 10” burglar bell & plunger type Tamper switches installed / stainless screws included

#1010 Series Bell Box / Non—Hinged

Overall dimensions 14 x 14 x 4“
18 ga electro—galvanized steel
Individual weight 16 lbs
Master carton 16 x 16 x 9"
Gloss beige powder coating
With 12v 10” burglar bell & plunger type
Tamper switches installed / stainless screws included




UTILITY CABINETS

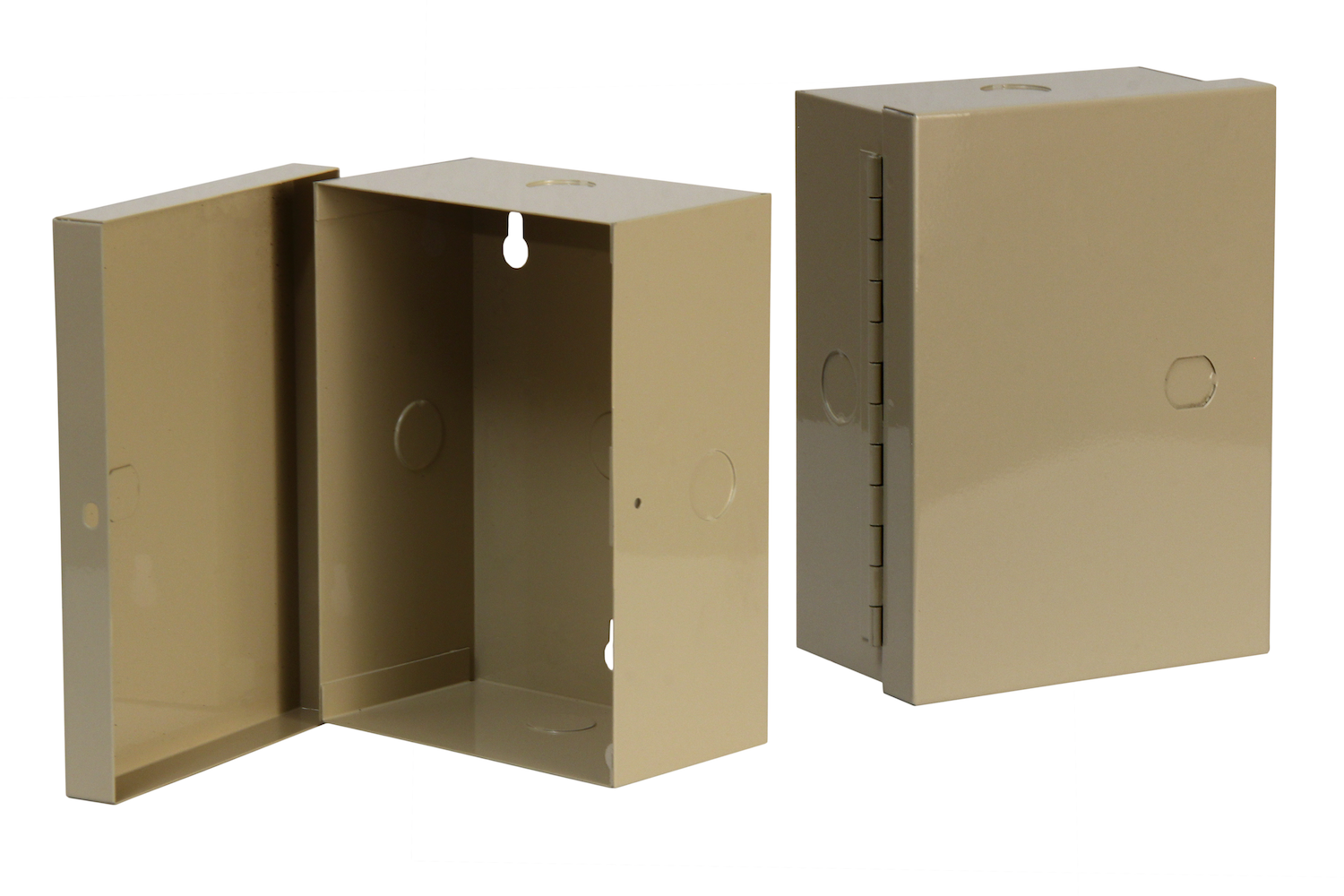

  #UC100 Utility Cabinet    Overall dimensions 11 x 11 x 3 1/2“ 20 ga steel / individual weight 5 lbs Gloss beige powder coating

#UC100 Utility Cabinet

Overall dimensions 11 x 11 x 3 1/2“
20 ga steel / individual weight 5 lbs
Gloss beige powder coating

  #UC100-1 Utility Cabinet    Overall dimensions 7 x 12 x 4“ 20 ga steel / individual weight 2 lbs Gloss beige powder coating

#UC100-1 Utility Cabinet

Overall dimensions 7 x 12 x 4“
20 ga steel / individual weight 2 lbs
Gloss beige powder coating


  #UC100-2 Utility Cabinet    Overall dimensions 5 x 7 x 3“ 20 ga steel / individual weight 2 1/2 lbs Gloss beige powder coating

#UC100-2 Utility Cabinet

Overall dimensions 5 x 7 x 3“
20 ga steel / individual weight 2 1/2 lbs
Gloss beige powder coating

  #UC100-3 Utility Cabinet    Overall dimensions 6 x 6 x 3“ 20 ga steel / individual weight 2 lbs Gloss beige powder coating

#UC100-3 Utility Cabinet

Overall dimensions 6 x 6 x 3“
20 ga steel / individual weight 2 lbs
Gloss beige powder coating



MISCELLANEOUS

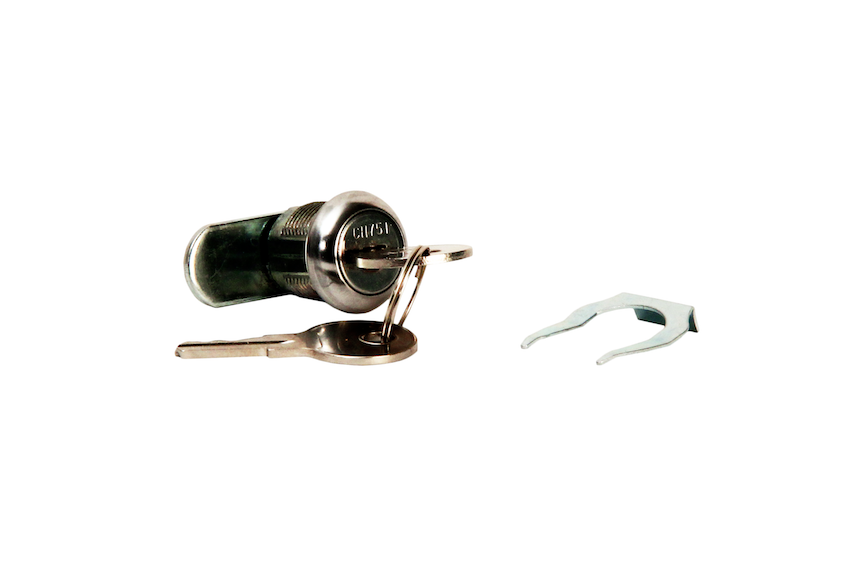

  #900034 Camlock with Clip & 2 Keys     Keyed alike #CH751

#900034 Camlock with Clip & 2 Keys

Keyed alike #CH751

  #AGMB10-1 Burglar Bell / 12v / 0.1A     Overall dimension 10“d Individual weight 4 lbs 68 mA current draw 95 dB at 10ft typical sound output (open field)

#AGMB10-1 Burglar Bell / 12v / 0.1A

Overall dimension 10“d
Individual weight 4 lbs
68 mA current draw
95 dB at 10ft typical sound output (open field)


  #AGPSW-1 Tamper Switch / Plunger Type     N.O. plunger switch for closed circuit loop 7mm overall stroke / 3mm operating stroke 25" wire leads Master carton 10 per

#AGPSW-1 Tamper Switch / Plunger Type

N.O. plunger switch for closed circuit loop
7mm overall stroke / 3mm operating stroke
25" wire leads
Master carton 10 per
